Elegant // Elegant BS312.2 Bookshelf
Elegant Bookshelf
Line 300 BS312.2 4.5" 2-Way Bookshelf Speakers with Jet 6 Tweeter
Combining an ultra-compact design with an acoustically overwhelming performance.
Cabinet
Its high rigidity aluminum cabinet from low material thickness enables a unique cabinet shape. The almost complete absence of a front baffle allows the sound to radiate with total freedom. The audible result is room-filling, unfettered, utterly captivating.

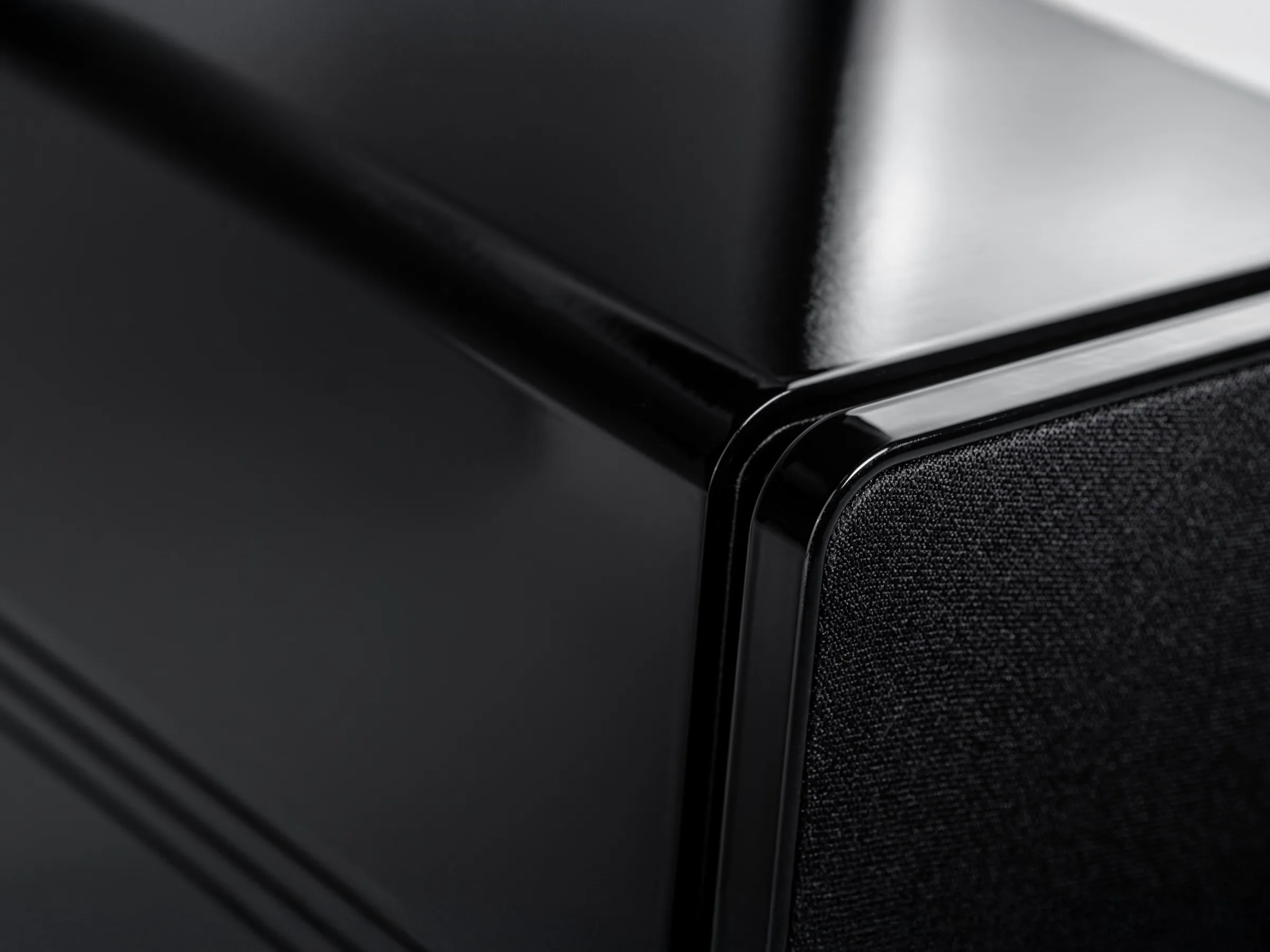

Finish
The eye catches sight of the high-gloss lacquered cabinet and the aluminum parts of the drivers at the front. The woofer features a black anodized aluminum membrane with crystal-shape.
Elegant BS312.2
30th anniversary
30 Years of Design Heritage
30 Years of Continuous Improvements
30 Years of Love from Customers
It is unmistakably based on the same Famous Design.
More Powerful
Woofer
More Powerful Woofer
Extra Magnet
Larger Voice Coil Diameter
HigherEfficiency
HigherThermalResilience
Louder and Longer without compromising the linearity of the speaker.
Alrulastic
Base
Beautiful and Functional
Aluminum Base to lift the speaker upwards
Inlay - Elastic Rubber Structure – For Acoustic Decoupling
Can be used as bottom plate for LS-60 mounting
Usable with all models sold for the past 30 years
Flexible
Front Grill Designs
For the Purist: Without Grill
Affordable Classic Grill: Metal-Mesh Grill (optional)
New Design Cover: Magnetic Grill with Cloth (optional)
Flexible Front Grill Designs (Colorfull Choices)
New Design Covering 6 colour variations (optional)
Red,Blue and Yellow in a black frame
Same colours in a white frame

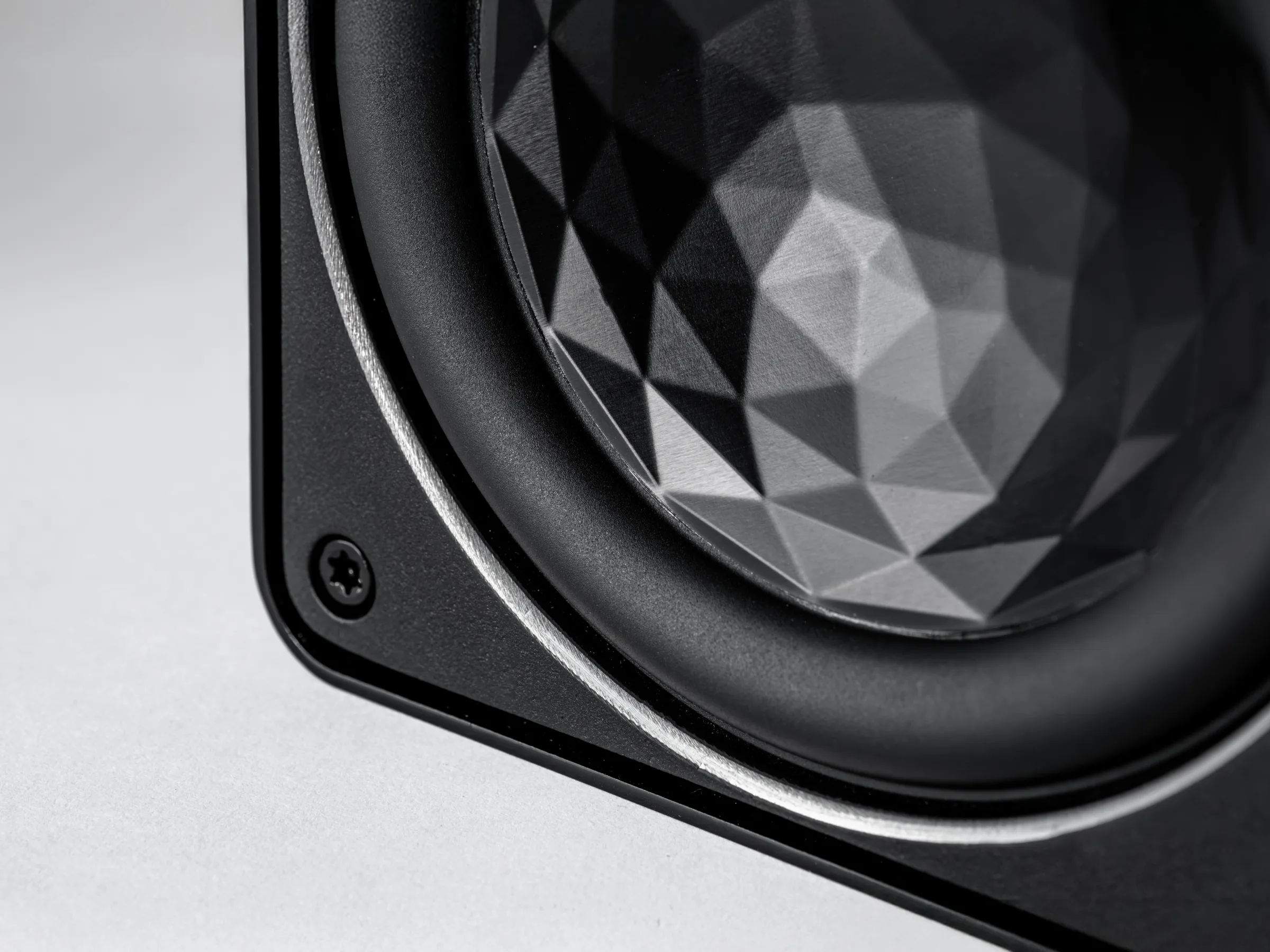

AS-XR Technology
Crystal Membrane
Aluminum Sandwich Membrane with Extended frequency range.
The eye-catching surface of the crystal membrane is more than just an attractive design feature.
Increased stiffness through crystal shape of aluminum cone
Extended frequency range (XR), smooth roll-off
Excellent large signal behaviour
Minimized VAS, (lot of bass out of small cabinets)

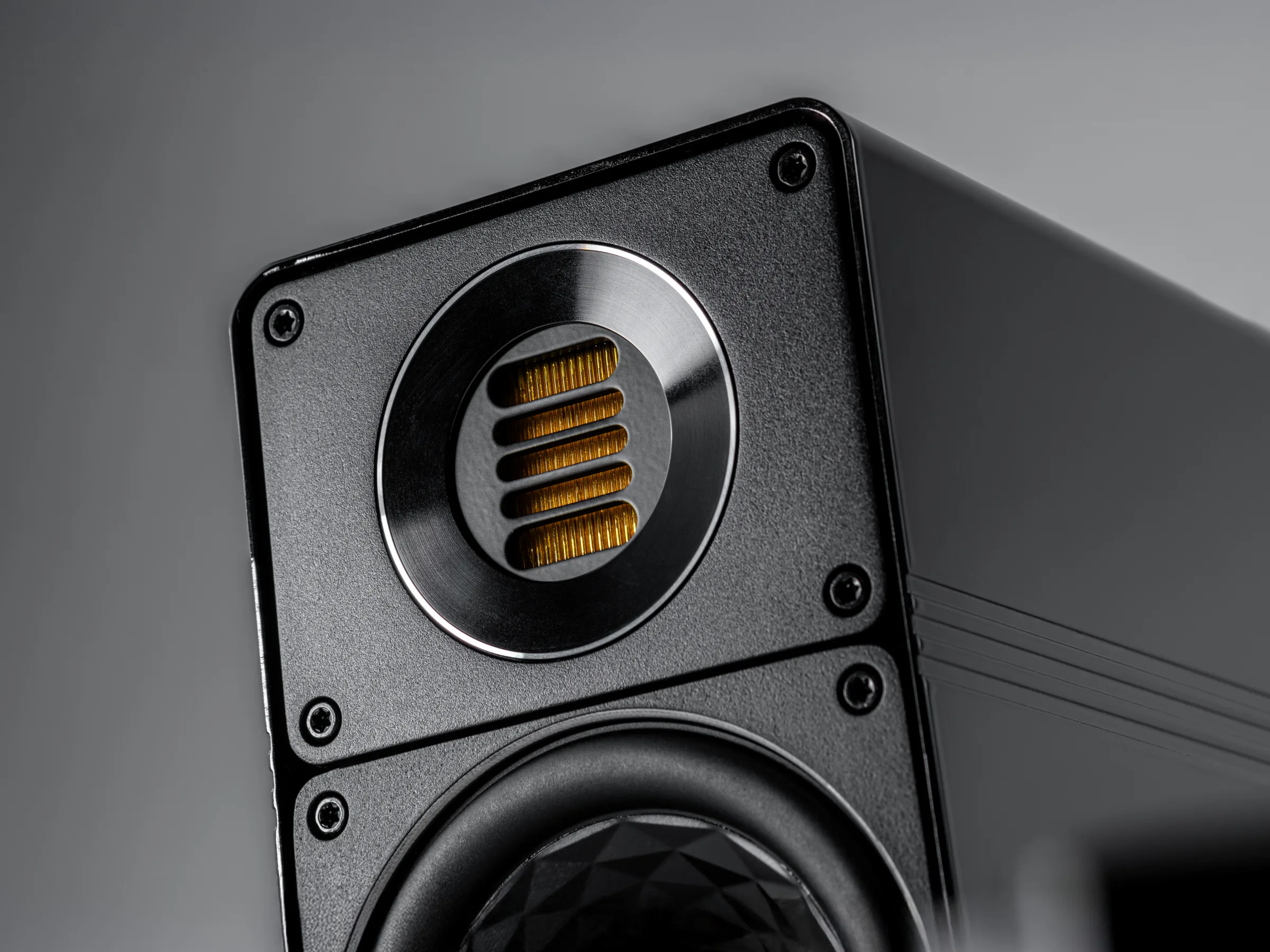

JET 6
ELAC's Air Motion Tweeter
Air Motion Transformer principle
Linear Frequency response > 50 kHz
Extended lower frequency range
Efficiency 92 dB / W / m
Improved signal accuracy
Ultra fast transient response - detail resolution
| Speaker Type: | 2-Way, Bass Reflex |
|---|---|
| Tweeter: | JET 6 |
| Woofer: | 115 mm AS-XR Cone |
| Crossover Frequency: | 3,200 Hz Hz |
| Frequency Response: | 42 to 50,000 Hz |
| Sensitivity: | 87 dB at 2.83 v/1m |
| Recommended amplifier power: | 50 to 150 W/channel |
| Nominal/peak power handling: | 70 / 100 W/channel |
| Nominal impedance: | 4 Ω; Minimum 3.4 Ω @ 280 Hz |
| Binding posts: | 5-way metal |
| Magnetic shielding: | No |
| Cabinet finish: | Gloss Black, Gloss White |
| Accessories included: | Metal grille |
| Dimensions (WxHxD): | 4.8 in / 123mm, 8.2 in / 208mm, 11.1 in / 282 mm |
| Net weight (each): | 15.9lb / 7.2kg |
